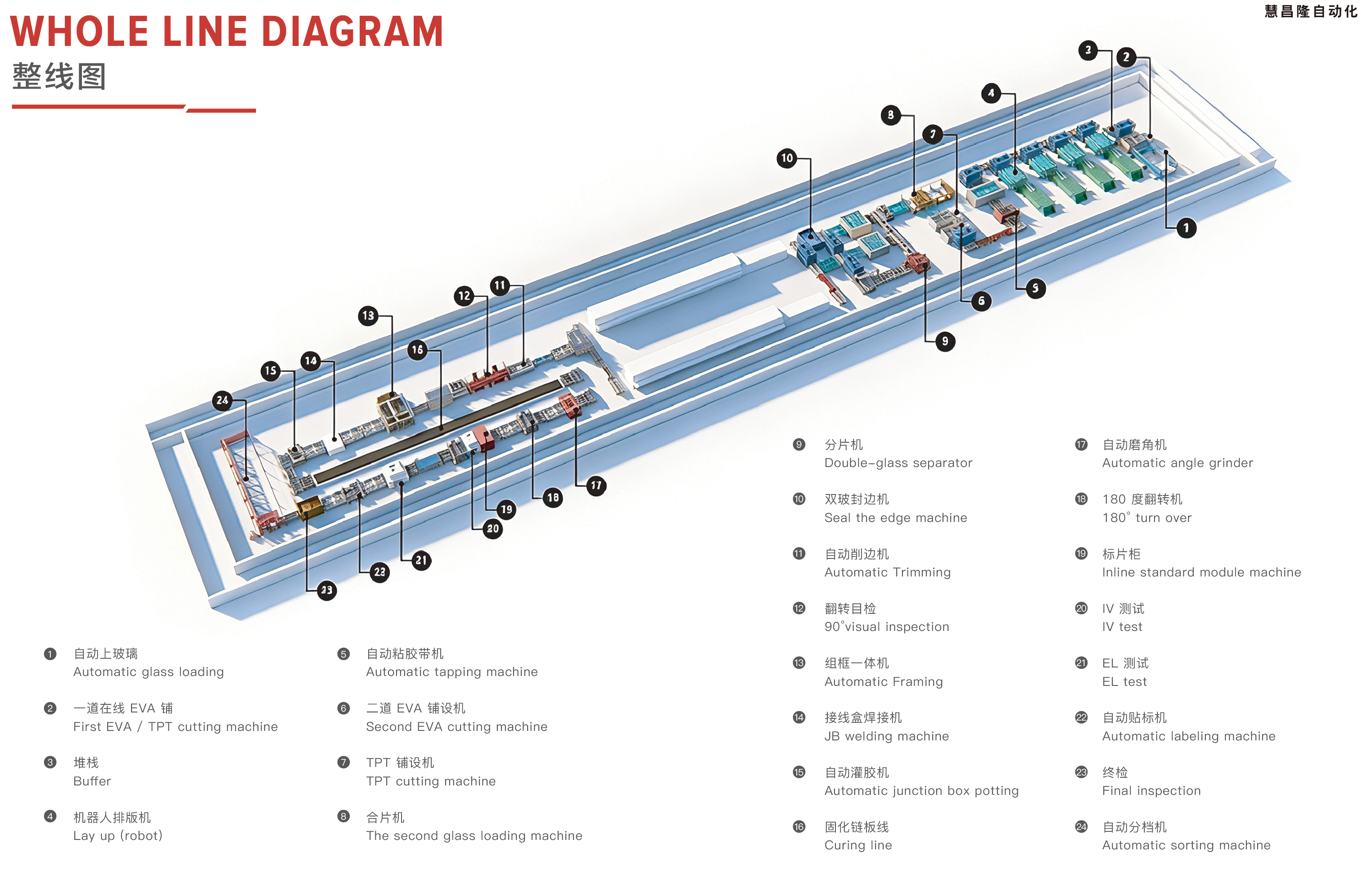

Photovoltaic Automation Equipment: Complete Production Line Diagram

The complete line equipment includes the following:

1: Automatic glass loading

2: An online EVA first EVA/TPT cutting machine

3 Stack Buffer

4 Robot Lay-up Machine

5 Automatic Taping Machine

6 Second EVA Laying Machine

7: TPT laying machine, TPT cutting machine

8 Double-Glass Loading Machine

9 Double-glass separator

10 Dual-Glass Edge Sealing Machine

11 Automatic Edge Trimming Machine

12, Flip Visual Inspection 90

13, Automatic Framing Unit

14 Junction Box Welding Machine

15 Automatic Junction Box Potting Machine

16 Curing Chain Conveyor

17 Automatic Angle Grinder

18, 180° Turnover Machine

19 Slide Rack Inline Standard Module

20: IV Test

21: EL Test

22 Automatic Labeling Machine

23 Final Inspection

24 Automatic Sorting Machine
